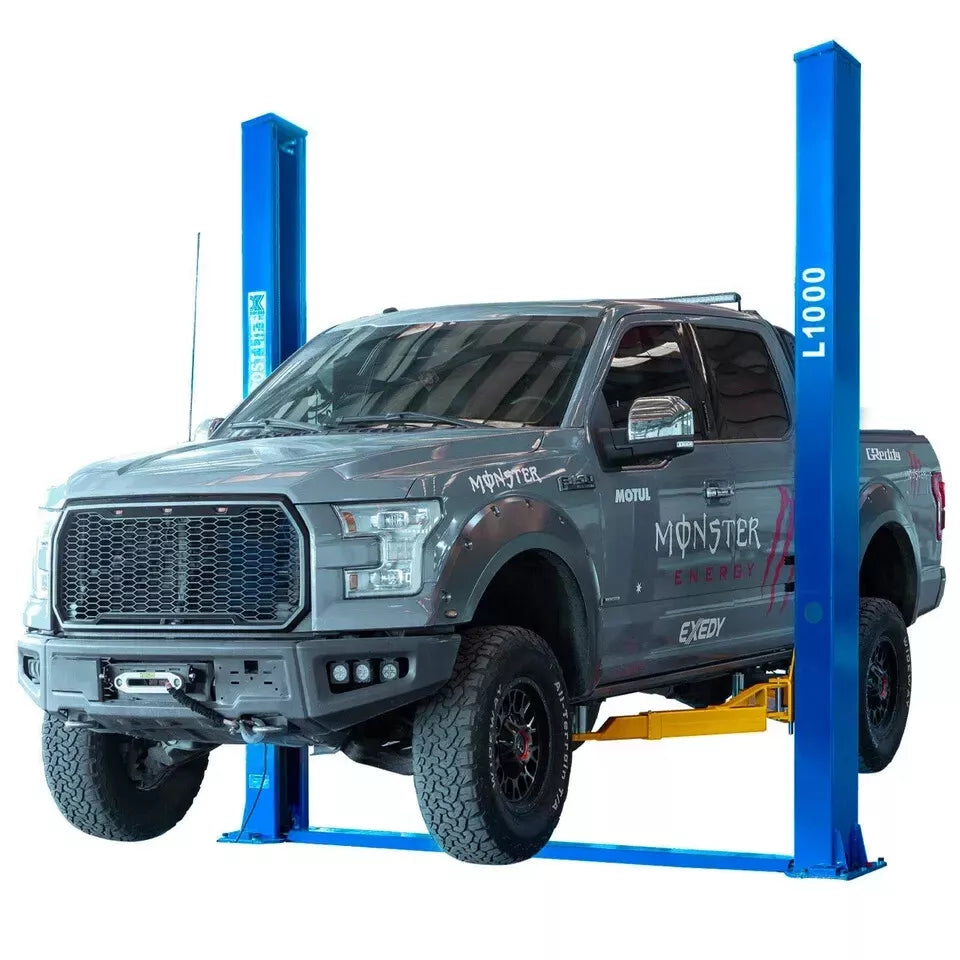

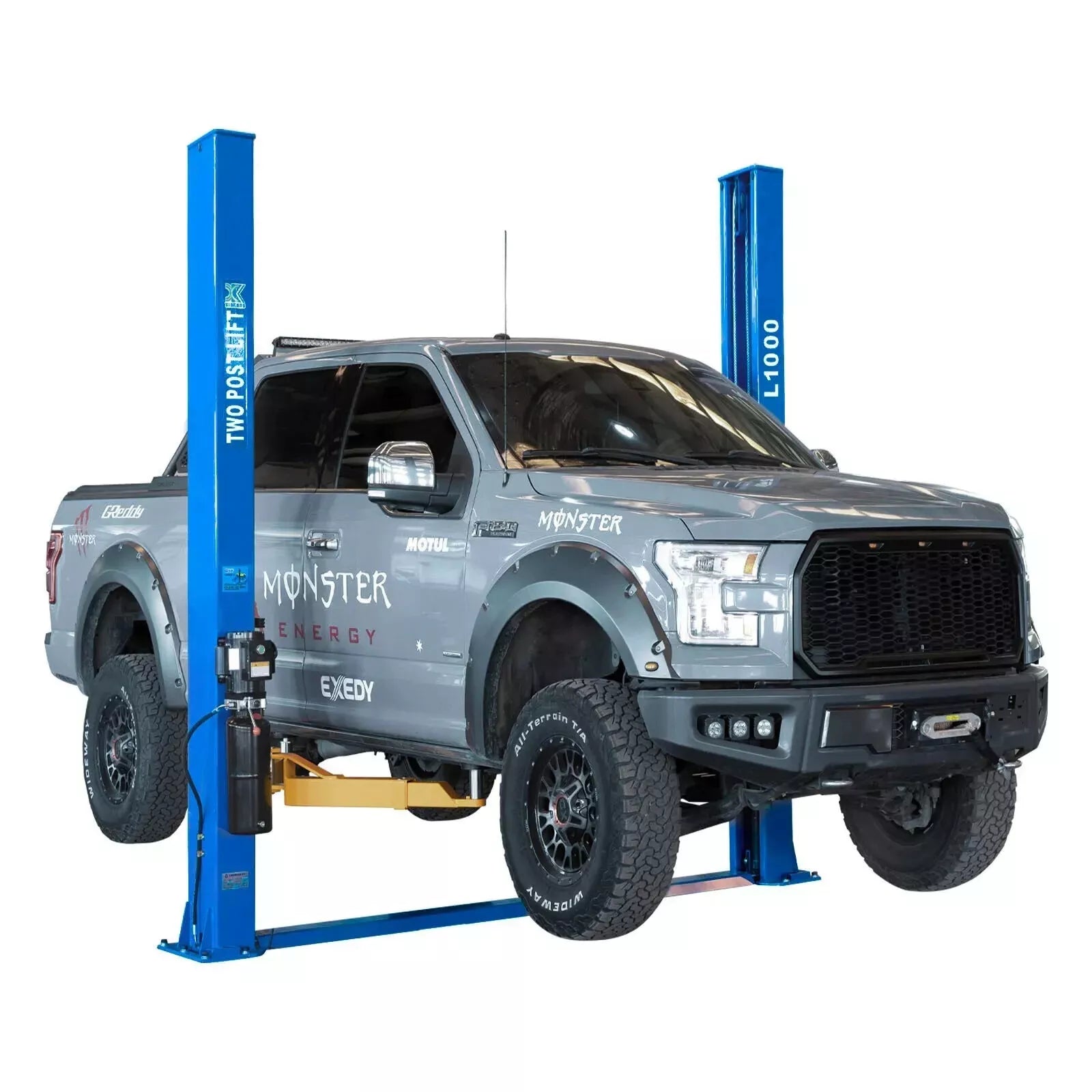

Xinkong 10,000 LBS L1000 2 Post Lift Car Lift Auto Truck Hoist Free Shipping 220V or 110V

  • $2,950.00
    Unit price per
  • Save $49
Shipping calculated at checkout.


Welcome to check our store for more items!

Welcome to our warehouse in CA to pick up yourself which will also save your money



Warranty:

12 months warranty on all metal parts, pneumatic parts, electrical parts and motors! When you choose us, you will get the BEST warranty.

Most of the sellers don't provide or only provide warranty for those parts for 3 or 6 months, 1 year at most. Please compare with others before you make the decision. Get into our shop and you will see the details of terms and conditions, especially the best warranty!



Factory Defective Items:

Refunds issued for defective items will be for the full purchase price of the item.

If a replacement is requested, there will be no additional cost for shipping the replacement if your item is found to be defective

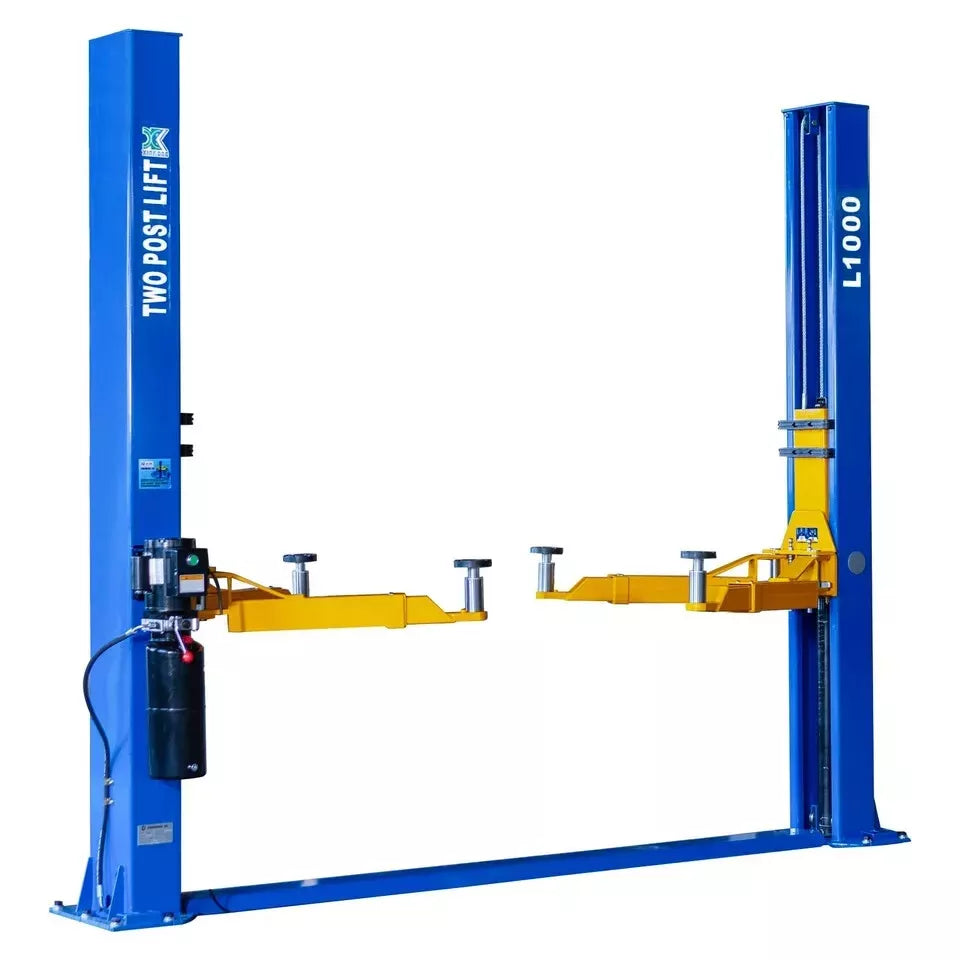

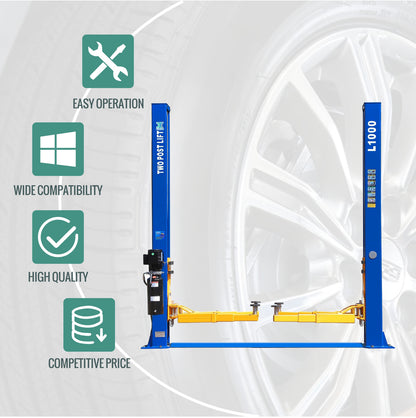

Auto Car Lift  L 1000 two post base plate



Features:   220V or 110V   60HZ  1PH   3HP MOTOR

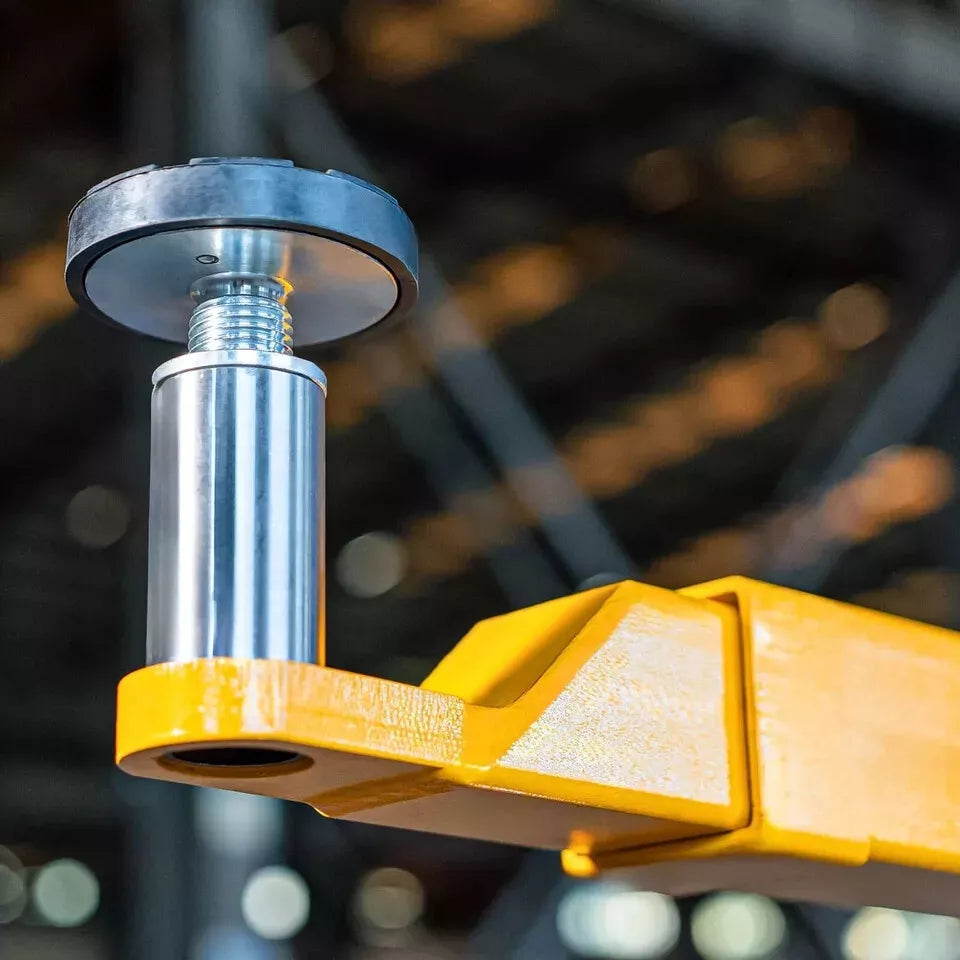

Free adjustable truck pads truck adapters included


Safety Mechanism:


  • Double Point Safety Lock Release

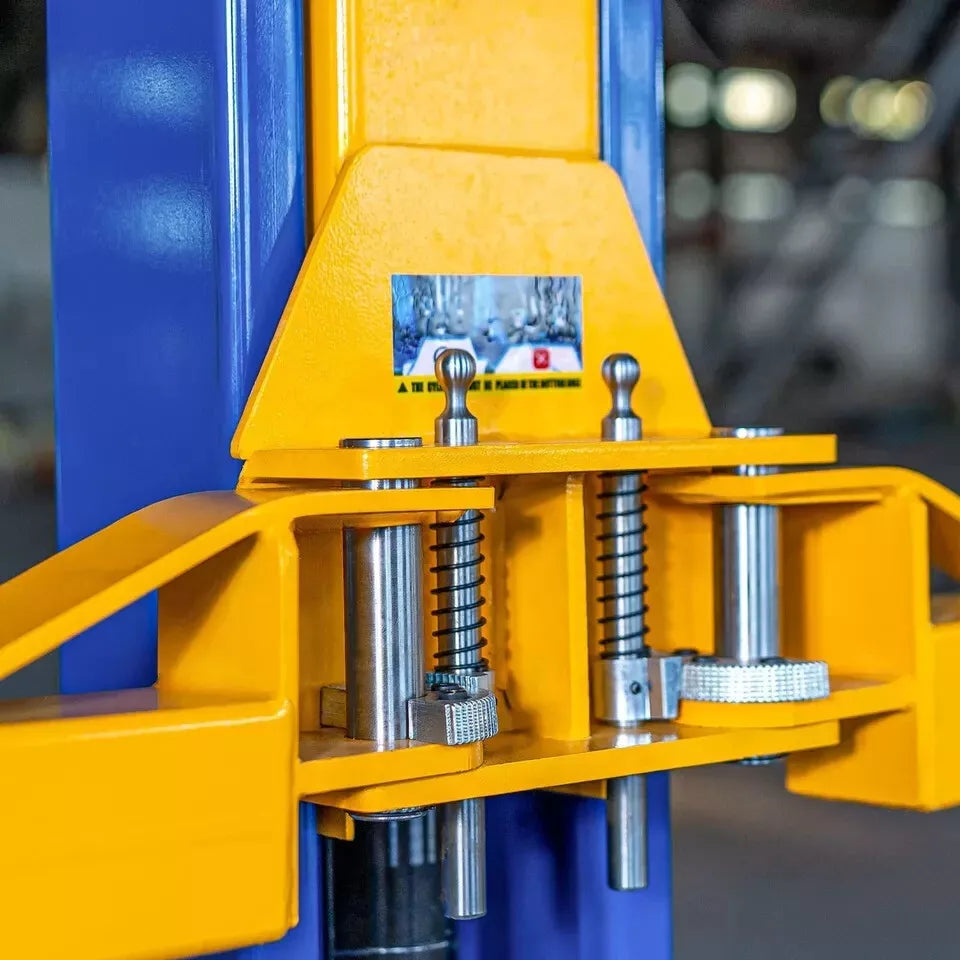

  • Automatic arm lock restraints
  • Relief valve built in power pump to prevent overloading

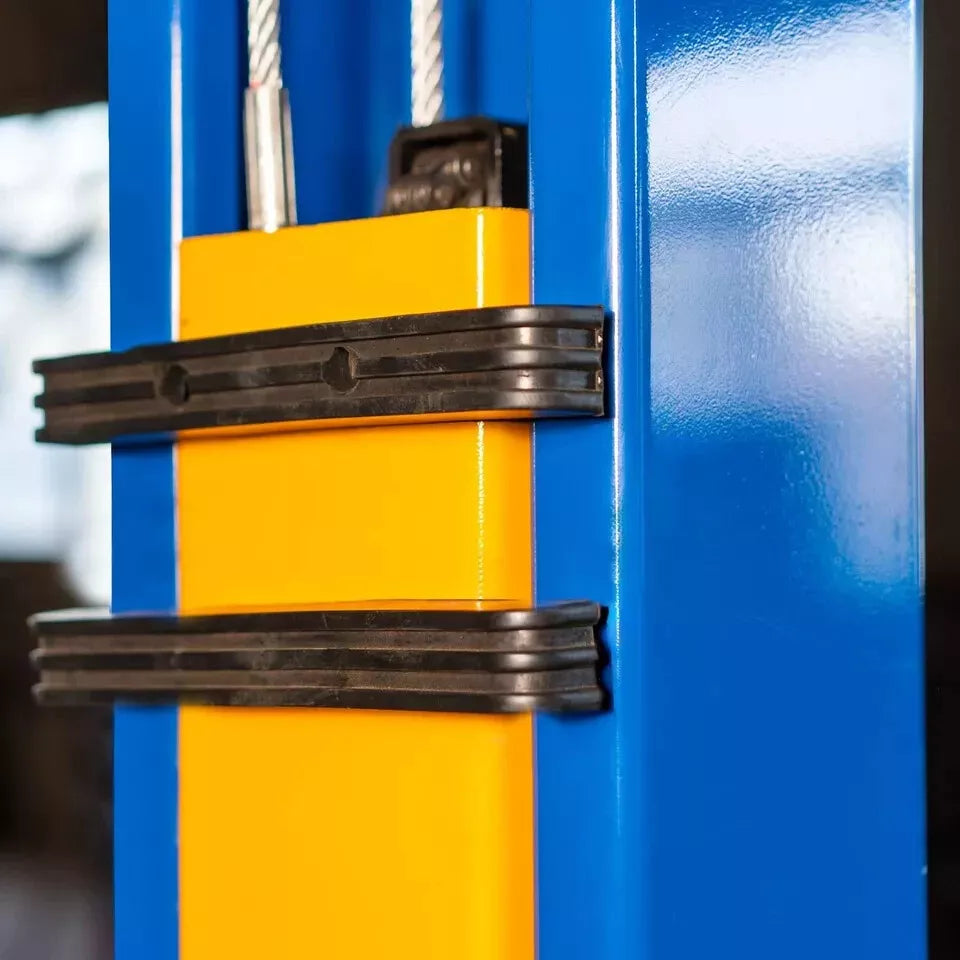

  • Door guards protection rubber

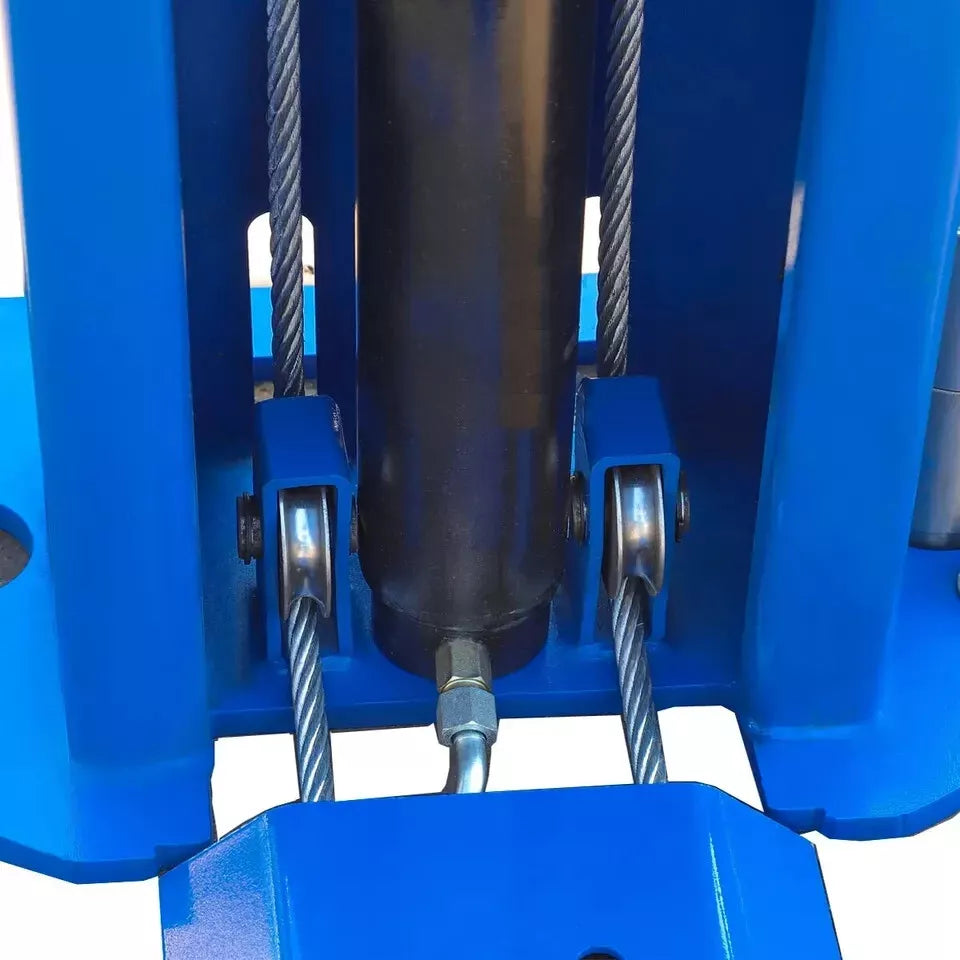

  • Heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life
  • Stiffened base plate 5/8" thickness
  • Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down
  • Anchor bolts/mounting hardware included



Control System


  • Lifting operation by pressing "UP" button on motor
  • Manual lowering operation by pressing lever
  • Relief valve built in power pump to prevent overloading
  • 1 sets truck adapters included

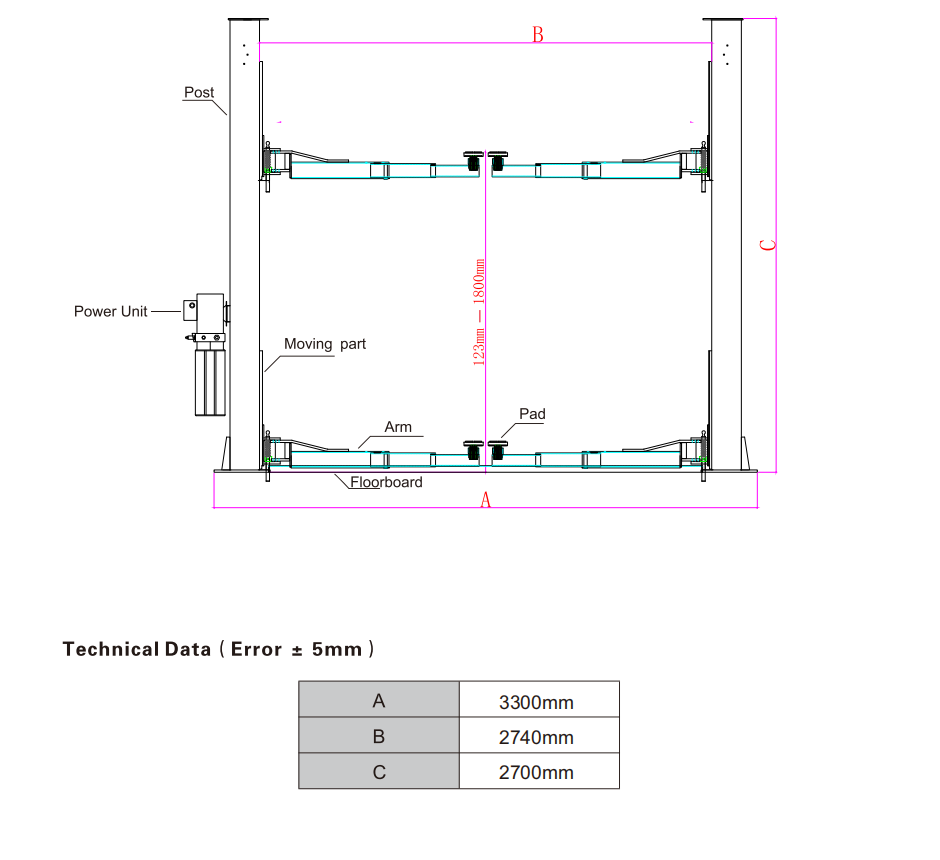

  • Lifting Capacity: 10,000 lbs

The overall Height 110-1/4"

  • The overall Width  130"
  • Column Width    10.62"
  • Base Width   18.89"
  • Column Thickness of Steel    3/16"
  • Carriage Thickness of Steel   15/64"
  • Arms Thickness of Steel     15/64"
  • Front Arm    30.7" to 48"
  • Rear Arm     30.7" to 48"
  • Min pad height: 3-7/8"
  • Lift height max: 78-7/8"
  • Drive-thru width clearance: 99 19/32"
  • Time to full rise: 20-60 sec
  • Shipping Weight: 1350 lbs

      Site Selection

      Before installing your auto lift, check the following:

      • Lift Location: Always use architect’s plans when available.  Check layout dimension against floor plan requirements making sure adequate space is available.  Your lift requires a 220v or 110V, 30amp, single phase, grounded electrical source.  There should be room enough to operate the lift in a safe manner and without restrictions.
      • Overhead Area: The area where the lift will be located should be free of overhead obstructions such as heaters, building supports, electrical lines, doors, lights, etc.
      • Floor Area: Visually inspect the site where the lift is to be installed and check for cracked or defective concrete.



      Floor Requirements

      • A level floor is suggested for proper installation and level lifting.  Small differences in floor slopes may be compensated for by proper shimming.  If a floor is of questionable slope, consider a survey of the site and/or the possibility of pouring a new level concrete slab.
      • New concrete must be adequately cured for at least 30 days.



      DO NOT install auto lift on any asphalt surface or any surface other than concrete.

      DO NOT install auto lift on expansion seams or on cracked or defective concrete.

      DO NOT install auto lift on a second/elevated floor without first consulting building architect.

      DO NOT install auto lift outdoors unless special consideration has been made to protect the power unit from inclement weather conditions.



      Concrete Specifications

      All models MUST be installed on 3,000 PSI reinforced concrete only.  Additional concrete requirements will vary by lift.

      8,500 lbs – 10,000 lbs lifts: 4″ Minimum Thickness

      11,000 lbs – 15,000 lbs lifts: 6″ Minimum Thickness



       Shipping:



      - We only ship inside the USA 48 States (Free to Commercial Address Only).



      - Residential Delivery $100 Extra Charge from Freight Company.



      - We do not ship to Alaska, Hawaii, Guam, Virgin Islands, Puerto Rico, PO Box addresses or APO/FPO addresses.



      Equipment Required for unloading:



      - Forklift or Tractor is required from customer for unloading the product.



      - Terminal Pickup can be requested if customer does not have the ability to unload.



      Contact Us: 6263157717

      - Feel Free to ask us any question or concerns. (we will get back to you within the 24 hrs).

      - We'll try our best to reply within 24 hours on working days. (48 hours on weekend or holidays)
