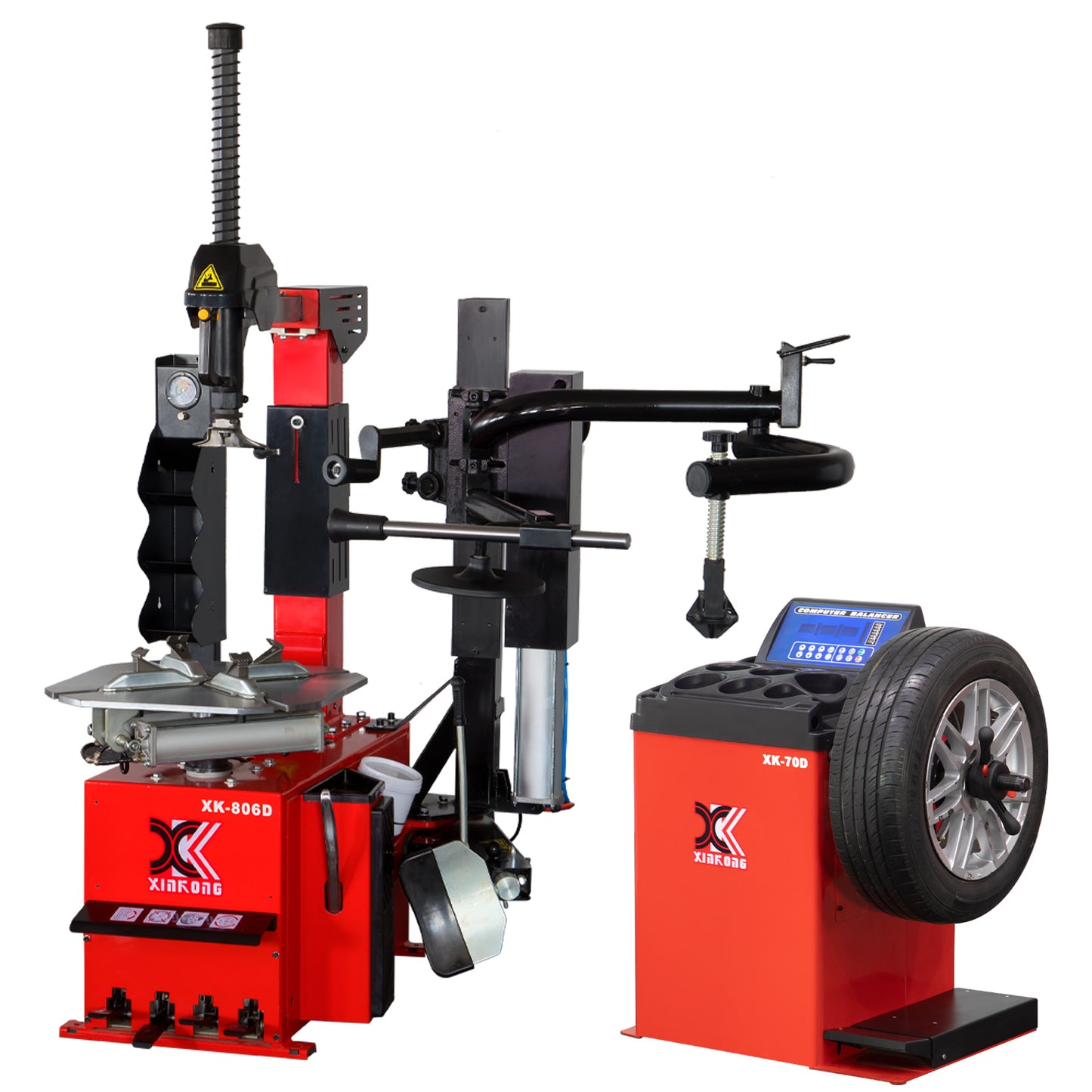

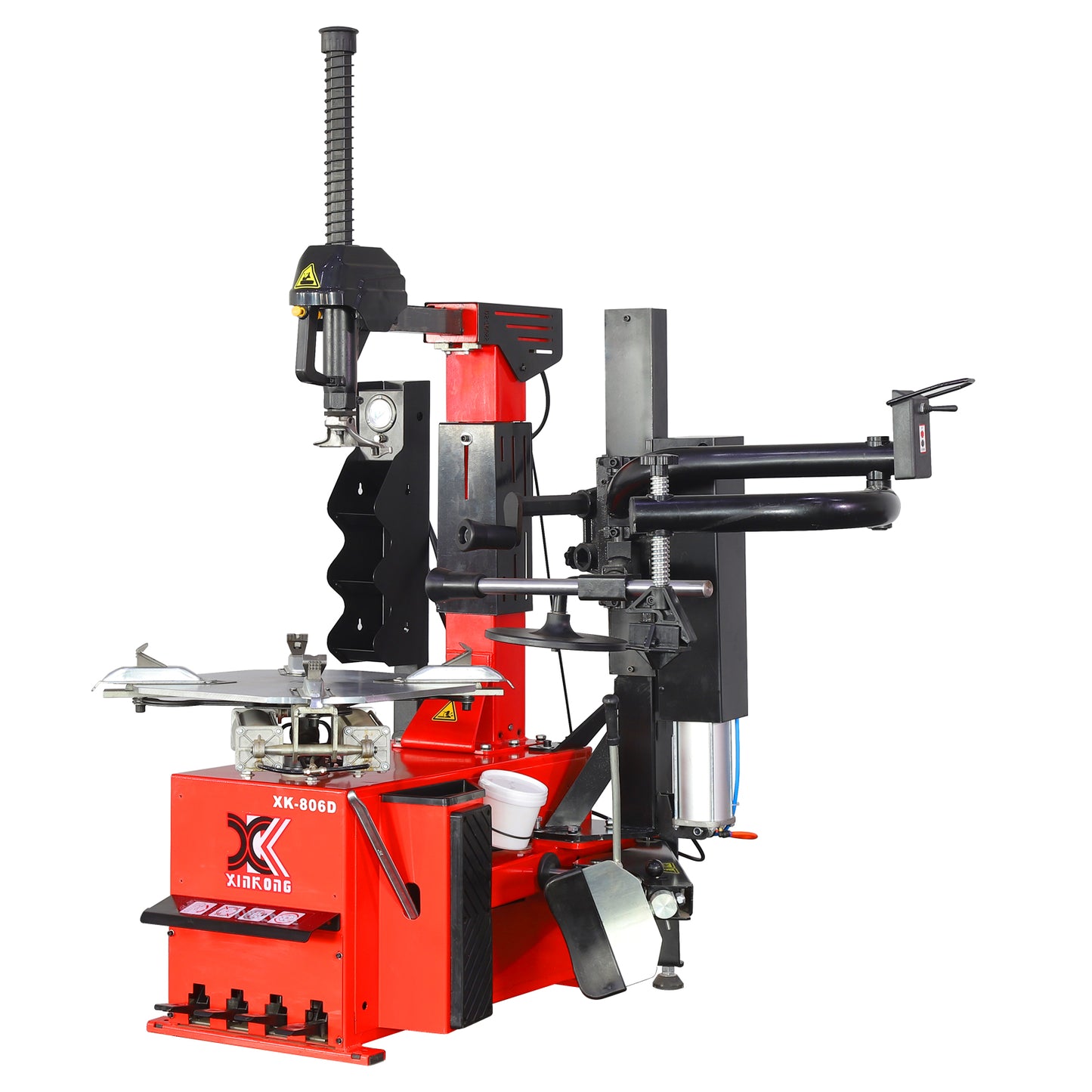

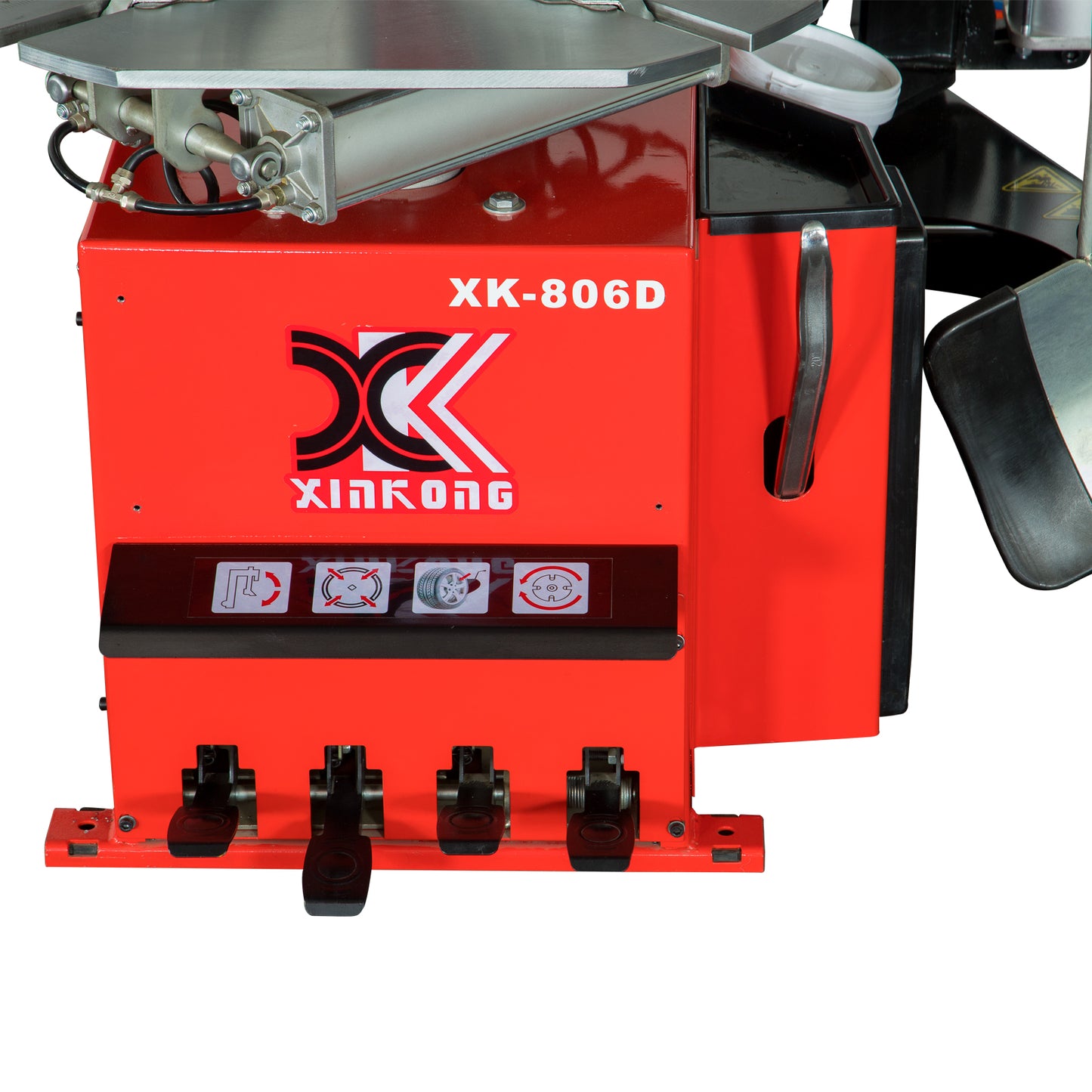

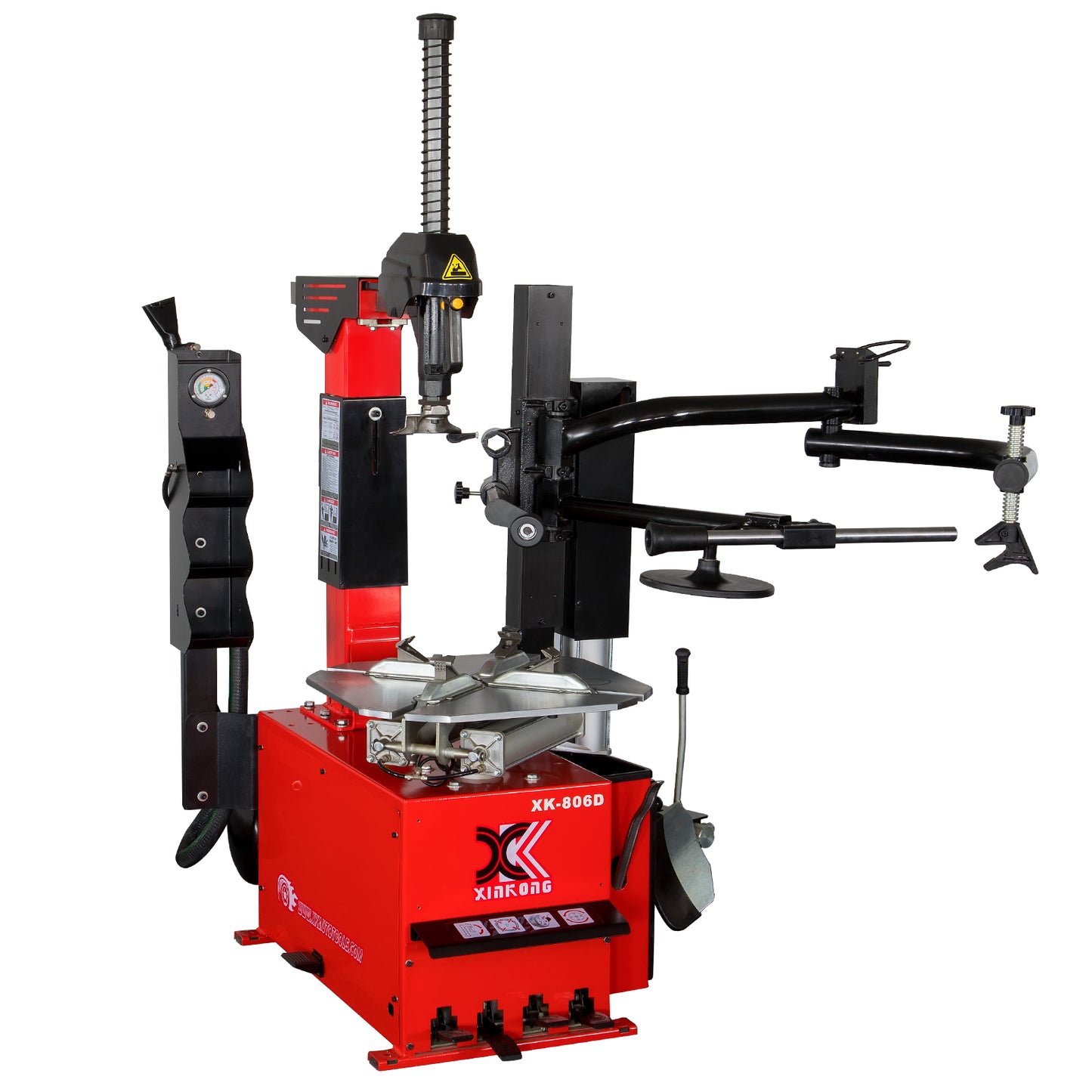

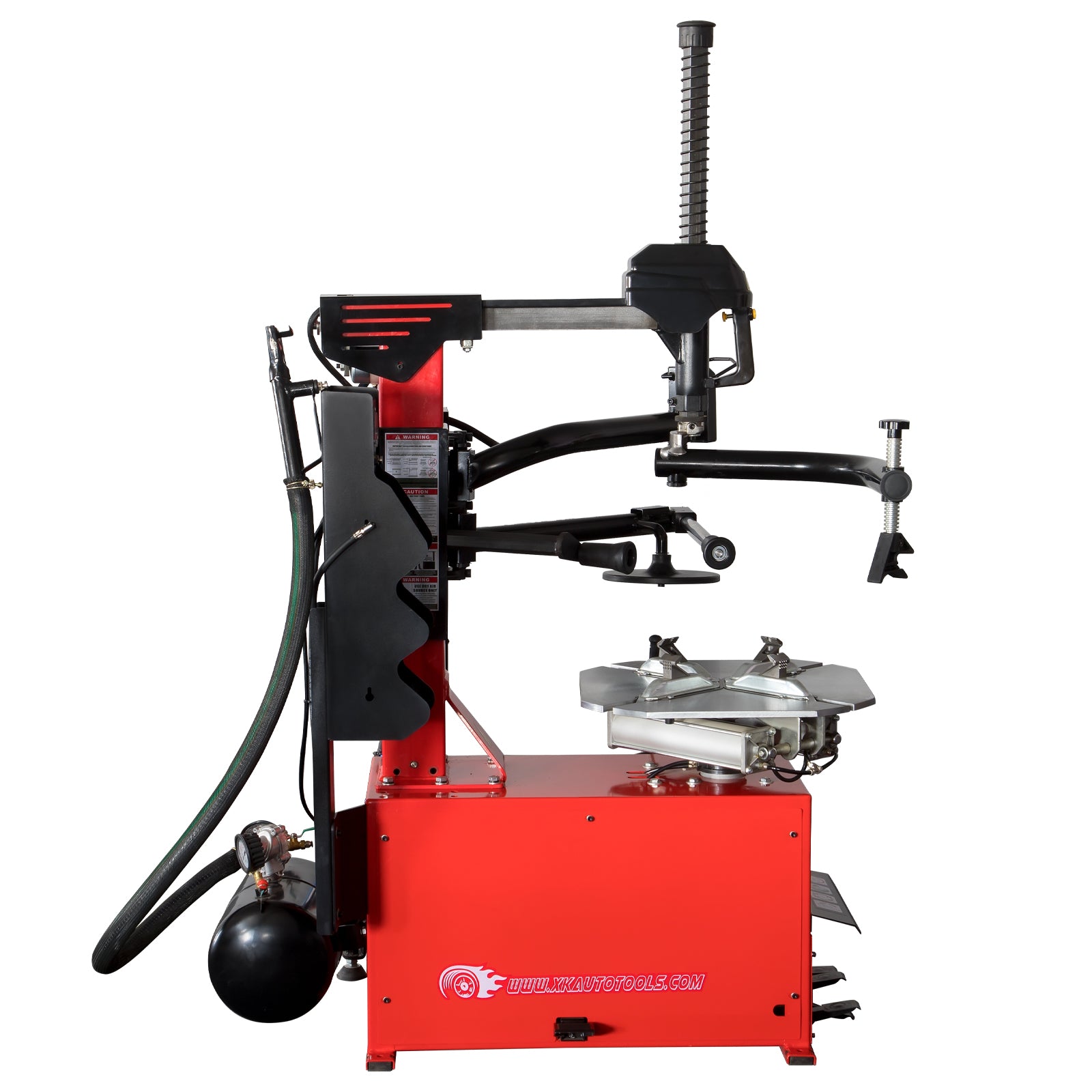

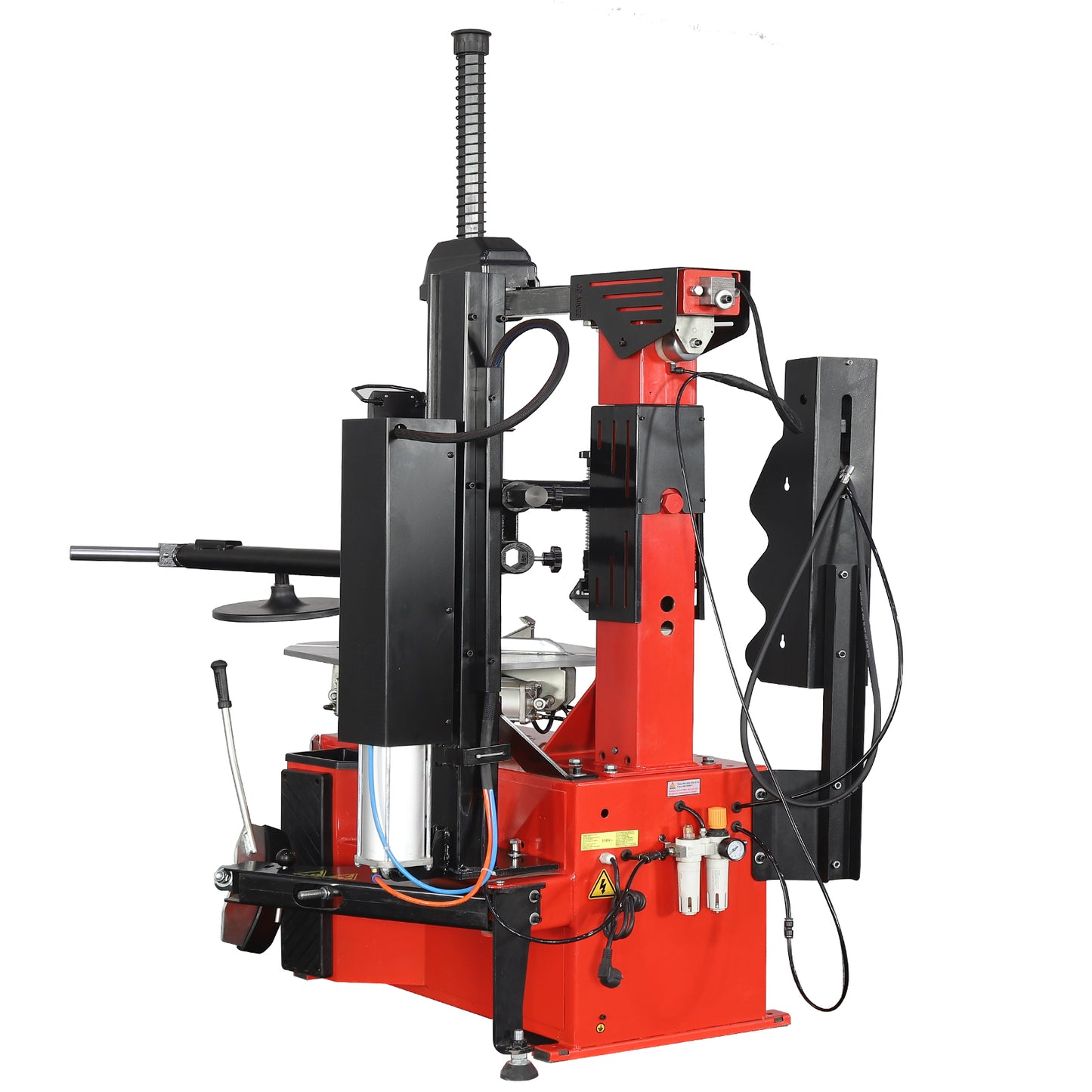

TIRE CHANGER MACHINE 806D FEATURES:

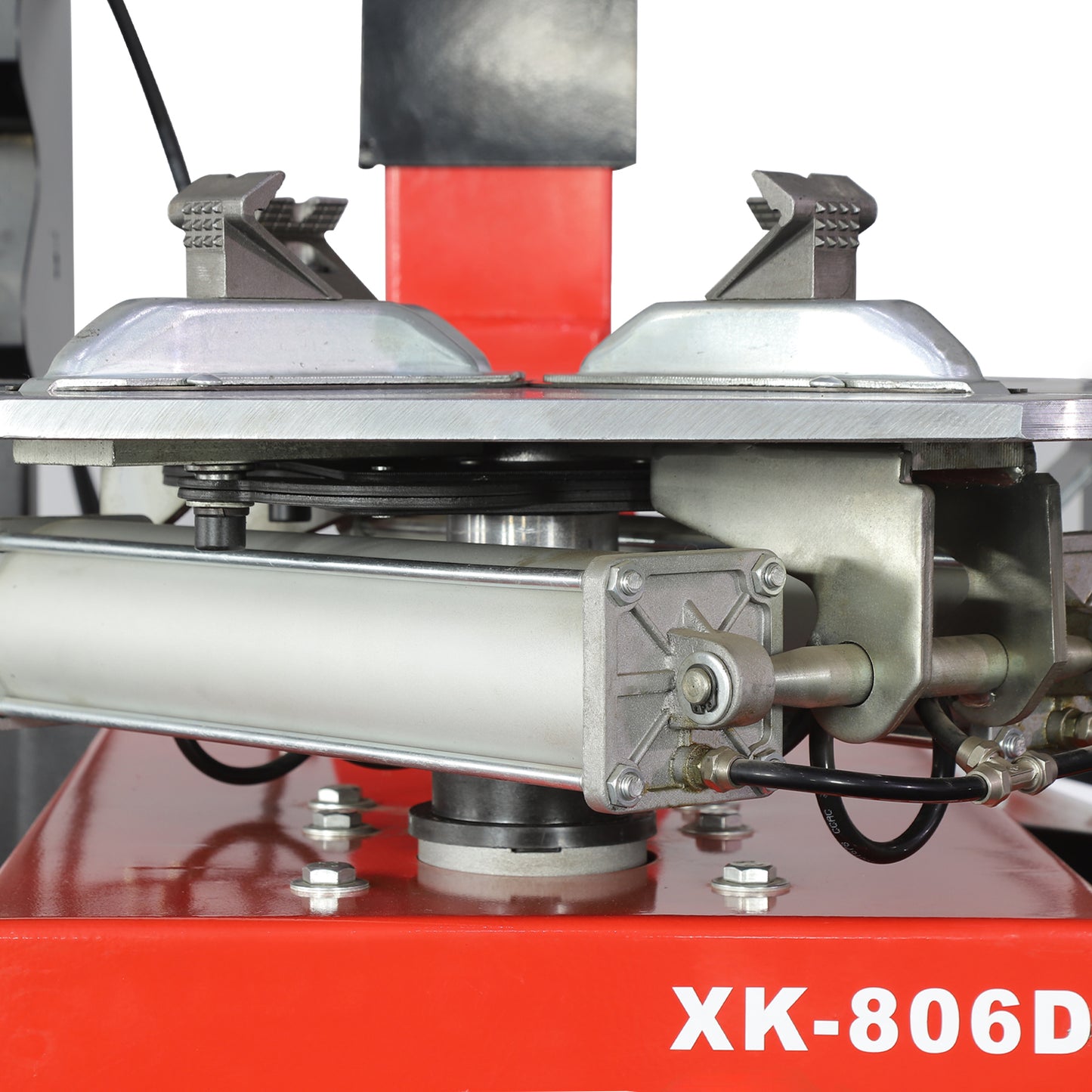

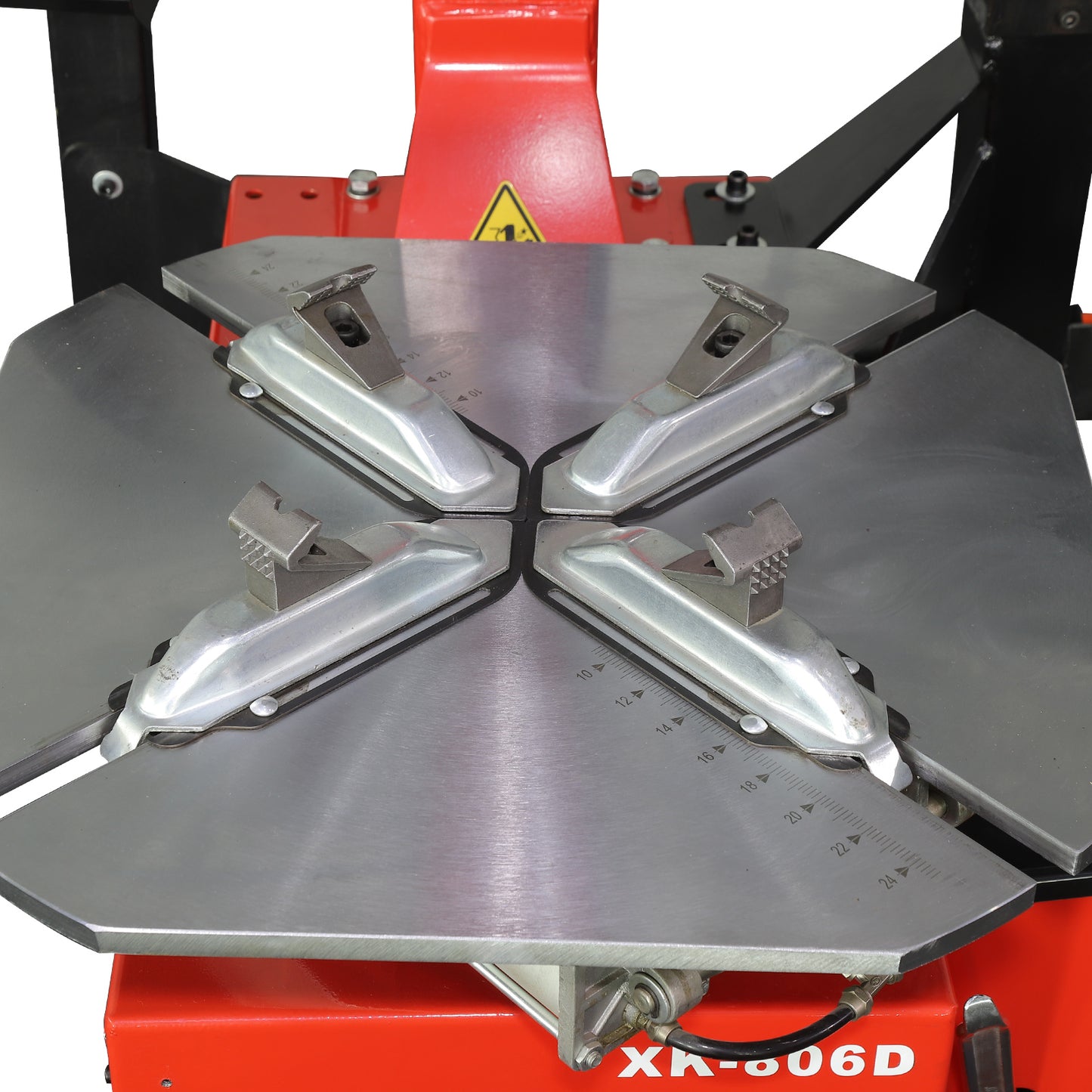

1.Enhanced s41 hexagon shaft with better intensity to avoid mechanical deformation during working.

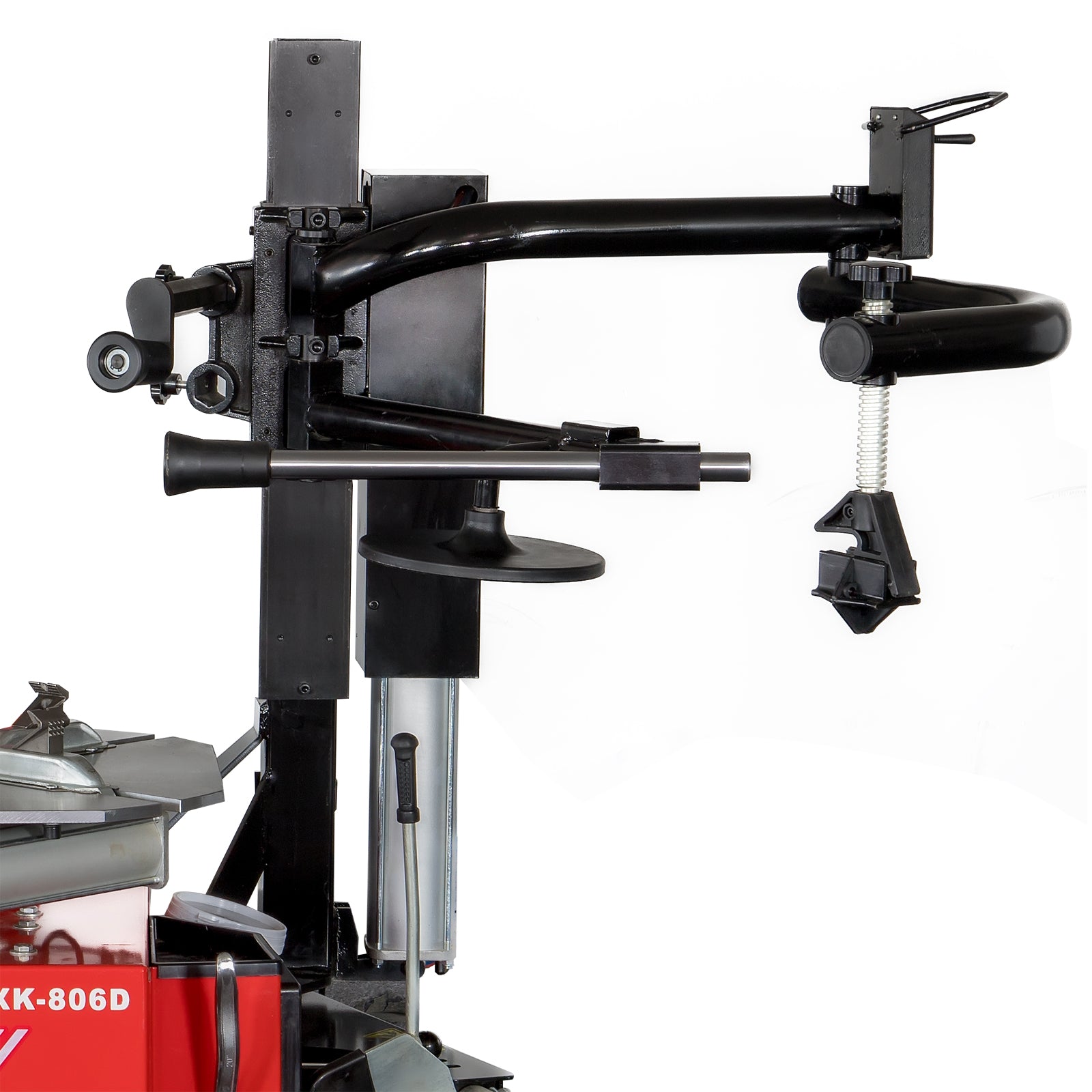

2.The clamping jaw is equipped with a protective sleeve to provide more comprehensive protection for the tires and rims.
3.Equipped with mechanical arm which makes mounting and demounting tire more quicker and easier.
4.The clamping jaw is made of special materials and is firm and durable.

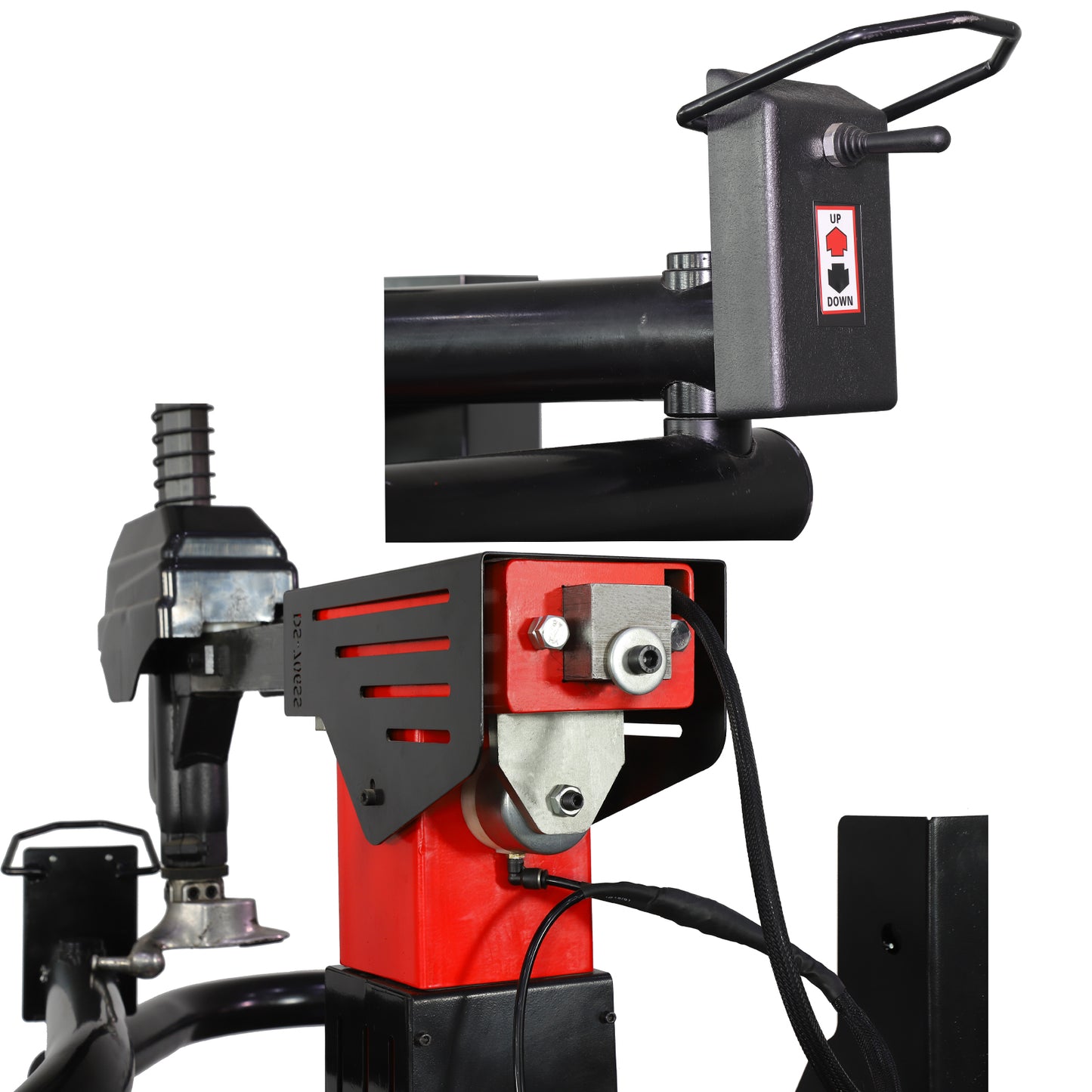

- Base of mechanical arm is a complete one set, inside with wear-resistant macromolecule nylon slide block, to achieve smooth operating.
6.The structure design is novel, the layout is reasonable, in order to use more flexible and convenient.
TECHNICAL PARAMETER:
Rim clamp from outside 12"-26"
Rim clamp from inside 15"-28"
Max wheel diameter 46"
Max tire width 3"-14"
Working pressure 8-10 bar
Voltage 110V
Power 1.1KW
Complete machine packing size 1250x1050x1760mm
Gross weight 816 lb

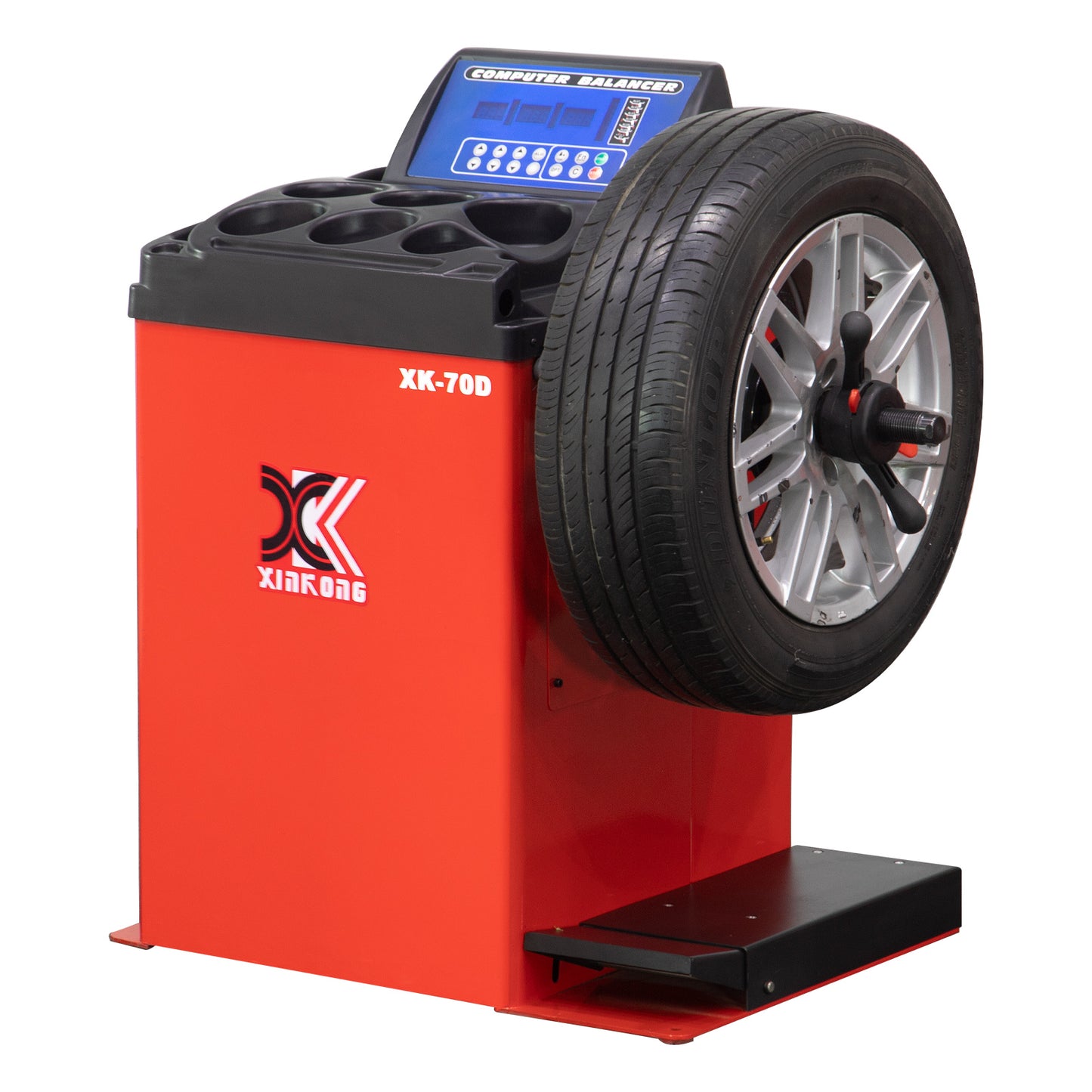

WHEEL BALANCER MACHINE 70D FEATURES:
1.With automatic static program and dynamic program, ALU program.
2.With external and internal data set arm, simple operation, measurement accuracy.
3.With a variety of balancing program, suitable for different wheel structure.
4.HTD program, split to hide weight behind spokes.
5.OPT program wheel vs rim optimization.
6.Foot brake positioning at unbalanced point, improve the balancing accuracy.
7.With fault diagnosis system to check the working status of key components, easy to detect and solve the problem.
WHEEL BALANCER TECHNICAL PARAMETER:
Rim diameter 10"-24"
Max tire diameter 39"
Tire width 1.5"-16"
Max tire weight 154 lb
Packing size 980x700x1050mm
Rotation speed 200r/ min
Balancer precision +-1g
Motor 110V
Gross weight 269 lb
Shipping:
We will charge $100 for residential area or farmland delivery and $50 for lift-gate service if needed. Or you can pick up from local freight depot without extra charge.
